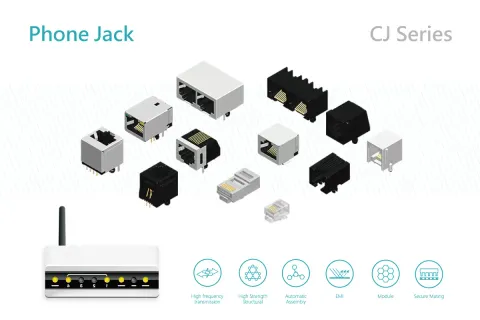

Telephone / Modular Jack Connectors

Board Mount Telephone Modular Jacks

Electrical:

Current rating: 1.5 Amp

Dielectric Withstanding: 1000 VAC for one minute

Contact Resistance: < 20 mΩ

Insulation Resistance: > 500 MΩ

Operating Temperature: -40°C - +105°C

Physical:

Insulator: Glass Filled Polyester

Flammability Rating: UL 94V-0

Contacts: Copper alloy

Shell: Copper alloy

Telephone Modular Plugs

Electrical:

Current rating: 1.5 Amp

Dielectric Withstanding: 1000 VAC for one minute

Contact Resistance: < 25 mΩ

Insulation Resistance: > 500 MΩ

Operating Temperature: -40°C - +60°C

Physical:

Insulator: Nature color, Polycarbonate

Flammability Rating: UL 94V-0

Contacts: Copper alloy

Shell: Copper alloy

Mechanical Data

Plug to cable tensile: 7.6Kgf
