Item Number: 55013
Product Description:

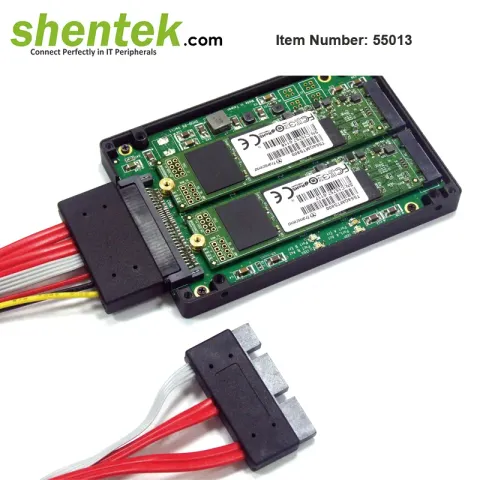

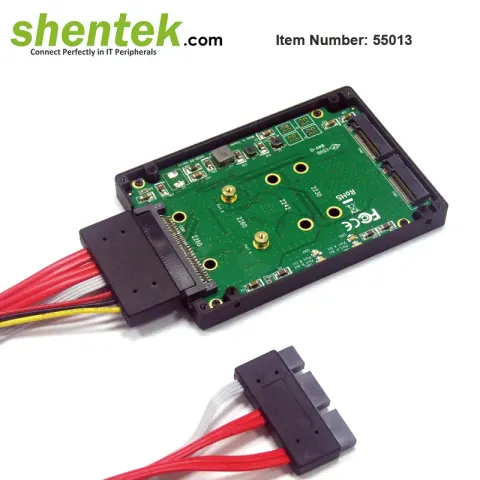

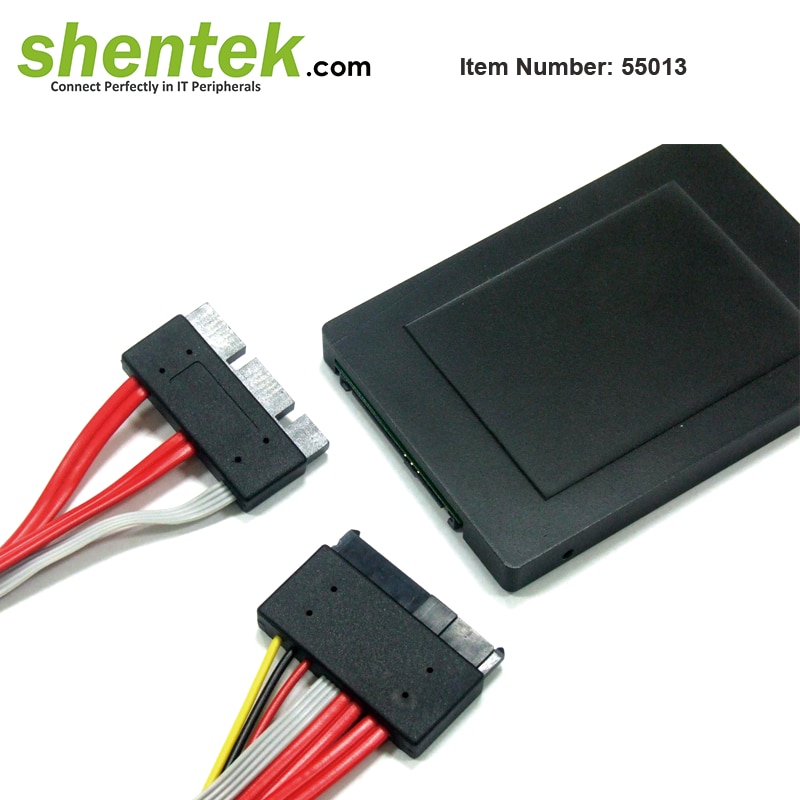

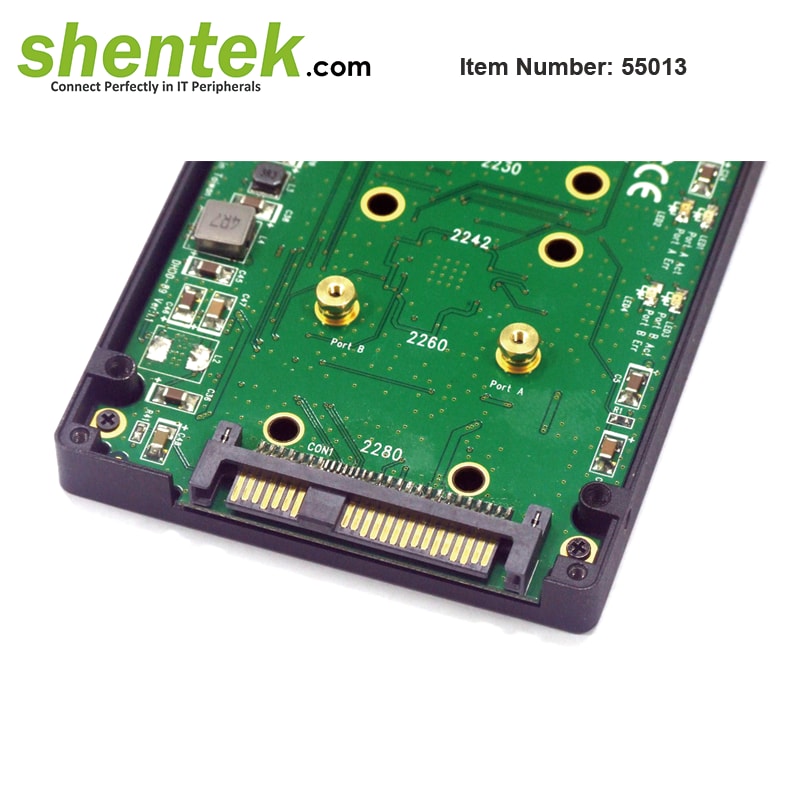

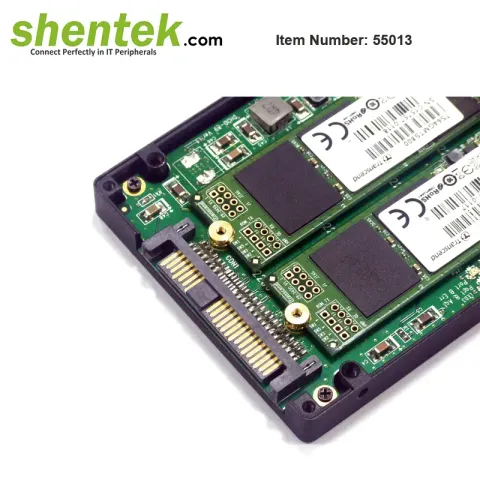

2 slot B key M.2(SATA base) with Hardware Raid 0/1 Adapter to SATA Express 2.5” HDD case
Features and Benefit
Supports SATA III / II / I(SATA 3 6G/2 3G/1 1.5G)
Transfer Rate up to 6Gbps(depend on SSD M.2 Modules function)
Full range size 2280, 2260, 2242 of M.2 Card
Supports Serial SATA Revision 3.2 spec
Supports 2.5” HDD size
Supports Native Command Quenue(NCQ)
Supports Port Multiplier command
Raid Features
Embedded hardware Raid engine
Supports Raid 0, Raid 1 and SPAN
Hardware Raid design
Supports SATA 6G/3G/1.5G spec
Supports Windows 7 and up
Specification
Hardware
Communication controller: Asmedia ASM1062R
Bus: SATA
Connector: B key M.2(NGFF) x 2
Interface
pors: SATA Express 3.2
Performance
Transfer rate: up to 6Gbps
Driver Support
Windows: Win 7, Win 8.1, and Win 10
Physical Characteristics
Bracket: Standard and Low Profile Bracket
Bracket Space: 1
Environmental Limits
Operating Temperature: -0 ~ 70℃
Storage Temperature: -0 ~ 75℃
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
Product Production
Production: Made in Taiwan
Product Location: Taipei, Taiwan
Package Content
2 slot B key M.2 Raid Adapter to 2.5” SATA Express x 1
Driver CD x 1
Quick Instill Guide x 1
Warranty
Warranty Period: 1 Year
Shipping Way
Register Air Mail
Delivery by: Chunghwa Post Co., Ltd
Delivery Location: Ship from Taiwan
Delivery Way: Register Small Packet – Air Mail
Delivery Time: for most of area is around 15 – 20 working days. South America area and some countries are around 21 – 30 working days.
EMS
Delivery by: Chunghwa Post Co., Ltd
Delivery Location: Ship from Taiwan
Delivery Way: Register Small Packet – Air Mail
Delivery Time: for most of area is around 10 working days. South America area and some countries are around 20 working days.
We suggest to use EMS, because it is fast and safe. Thank You
