1MΩ 高阻抗, 10:1 被動探棒, 德國製造

規格

• 類型 : Passive Probe

主要特徵

極高阻抗1MΩ, 量測迴路相位/增益時, 數據更加精準.

有效降低線路中的電容(性)負載.

保護輸入端, 避免造成儀器損害.

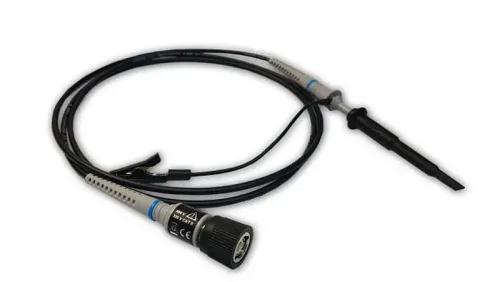

Passive 10:1 Probe PML 111O

The PML 111O is a passive 10:1 probe manufactured by PMK, optimized for the use with Bode 100. It features a unique 1 MΩ design for the AC-coupled inputs of Bode 100.

Use the PML 111O to:

• Perform highly accurate loop gain measurements
• Reduce capacitive loading of your circuit
• Protect the input channels of your Bode 100

Key Features and some technical data:

• Compact 2.5 mm probe design
• 1 MΩ || 12.5 pF input impedance for lowest noise
• Exchangeable gold plated spring-tip
• Attenuation ratio: 10:1

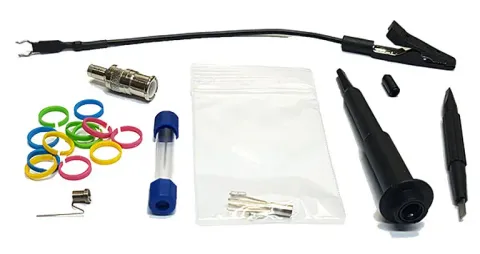

附件

• Manual_PML111O.PDF(2.48MB)

最近更新 : 2020-03-13
