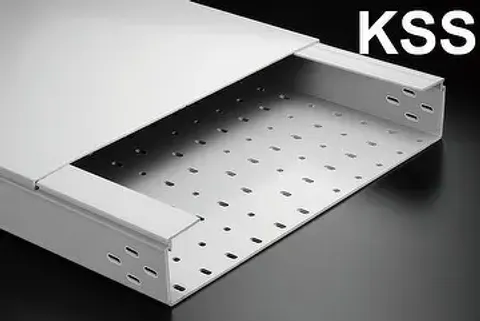

KSS 絕緣配線槽

• 產品細節
• 公司簡介

規格

• 類型 : Slotted

主要特徵

材質：	採用UL合格之南亞PVC（灰色）製成，通過美規94V-0防火等級，歐規M1防火等級，耐燃性佳，絕緣性良好，不自燃，軟化溫度86℃。

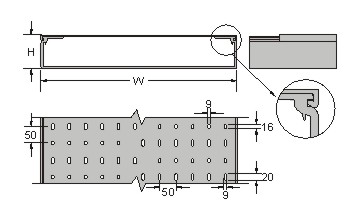

構造：	由槽底及槽蓋兩部份組成，以組合後外部之寬、高為規格標準。
特點：	1.	專業溝槽及底孔設計，配合專業L型連接片使用，能強化配線槽連接處，平穩美觀、施工快速方便。
	2.	配線槽底部沖孔設計，能將電纜產生的溫度，均勻且快速的散熱。適合大型工程配線使用。
■	所有規格均可依需求訂製長度，歡迎洽詢。

SDH-15060, 150100, 200100, 300100

SDH-300100J, 400100, 500100J, 600100

單位：mm
	型　號 Item No.	寬x高 WxH	電線容量 Wire To Be Contained (以2.0平方計算)	長　度 Length
	SDH-15060	150x60	310~480pcs	2M (備有3M 另洽)
	SDH-150100	150x100	450~600pcs
	SDH-200100	200x100	600~800pcs
	SDH-300100	300x100	1040~1200pcs
	SDH-300100J	300x100	1040~1200pcs
	SDH-400100	400x100	1200~1600pcs
	SDH-500100J	500x100	1730~2000pcs
	SDH-600100	600x100	2080~2400pcs

產品認證

附件

• SDU.jpg(0.07MB)

最近更新 : 2019-03-19
