IP68 塑膠開關箱 - Maxpro 系列 (Double Bit 門鎖)

• 產品細節
• 公司簡介

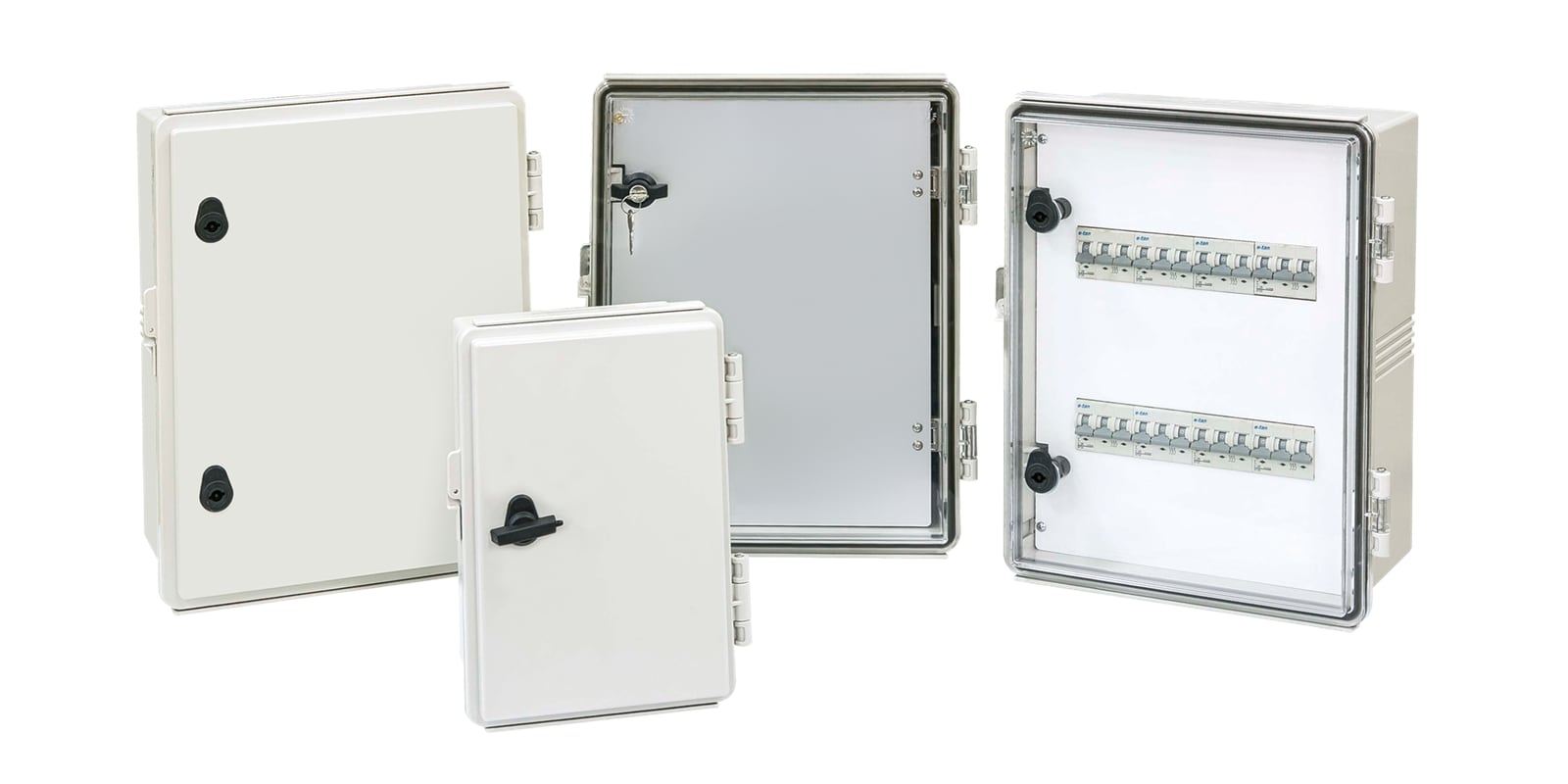

IP68 防水塑膠開關箱

主要特徵

1. 開關箱防水等級 IP 68 , 放入水下 1 米 1 小時

2. 開關箱鎖頭可以使用2種鎖頭 , PBL 和 PKL , IP68 防水等級

3. 開關箱內部可以多種變化裝載電氣元件

4. 開關箱的門分透明跟不透明

5. 安裝底板可選用鐵底板或塑料萬用板

6. 不鏽鋼材質304的固定架可讓開關箱容易固定與安裝

7. 如您有需求，我們可提供適用於特殊環境之開關箱，例如臨近海邊、海灘、海上(太陽能)、船上或水處理場所

Material	ABS	Polycarbonate (PC)	Polycarbonate (PC)
應用	一般通用	耐候	耐候
顏色	淺灰 (RAL 7035)	淺灰 (RAL 7035)	透明
撞擊防護	IK 08	IK 08 / 10	IK 08 / 10
溫度範圍	- 40℃~＋60℃	- 40℃ ~＋80℃ ,  up to 100℃ @ 1 HR	- 40℃ ~＋80℃ ,  up to 100℃ @ 1 HR
耐燃	UL 94-HB	UL 94 V-0	UL 94 V-0
抗UV	-	UL746C (f1), ⊿E9.07@1000h	UL746C (f1), ⊿E5.8@1000h

█ 選配

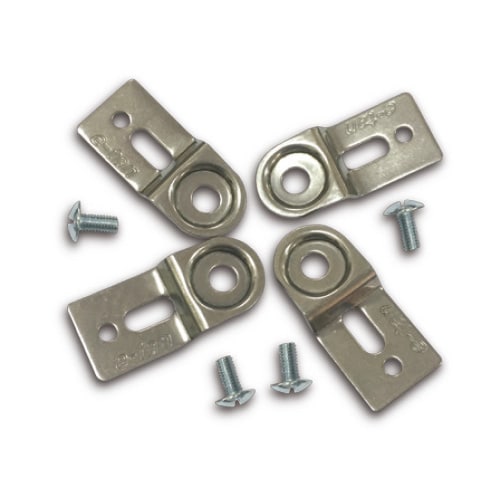

尺寸	ABG		ABT		PCG		PCT		托架器	底板
H x W x D (mm)  ( Cover included )	Body  ABS	Cover  ABS	Body  ABS	Cover PC	Body   PC	Cover   PC	Body   PC	Cover   PC		鐵	塑膠
	淺灰蓋		透明蓋		淺灰蓋		透明蓋			1.6 mm	4 mm
310 x 210 x 150	MP 3215 ABG		MP 3215 ABT		MP 3215 PCG		MP 3215 PCT		B60	MI32	2030 PL
426 x 326 x 200	MP 4320 ABG		MP 4320 ABT		MP 4320 PCG		MP 4320 PCT			MI43	3040 PL
426 x 426 x 200	MP 4420 ABG		MP 4420 ABT		MP 4420 PCG		MP 4420 PCT			MI44	4040 PL

Locking System

PBL-L	PBR-R	PKL

Part No.	門鎖位置	門鎖種類	開門方向	防護等級
PBL-L	左	Double Bit   標準型	由左向右	IP68
PBL-R	右		由右向左
PKL	-	Manual with key lock   鑰匙型	-

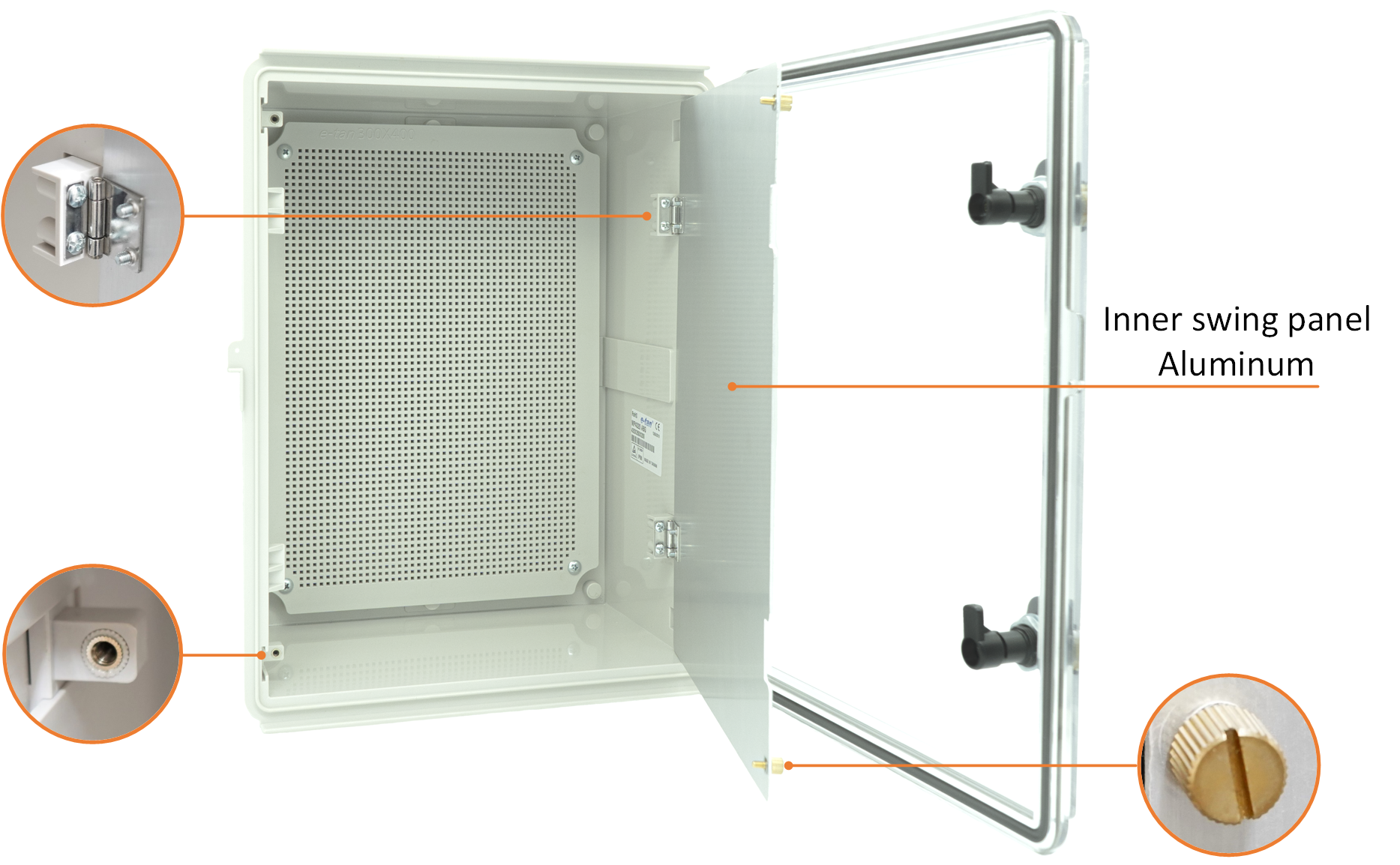

Inner Swing Panel

Part No.	Use with MP Series
MP-ID-32	MP 3215
MP-ID-43	MP 4320
MP-ID-44	MP 4420

最近更新 : 2024-08-06
