10G SFP+ 光纖模組 , Duplex LC, 300M~100KM (可做工溫)

型號
FSPP-H7 Series
供應商
明虹科技股份有限公司更多該商品之資訊
請求報價
聯繫供應商

規格

  • Data Rate : 10Gbps
  • Distance : 300M~100KM
  • Remark : 10G SFP+ Transceiver

主要特徵

Product Features

10G SFP+ Transceiver
850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 300M~100KM

  • Compliant with IEEE802.3ae 10GBase Ethernet Standard
  • Compliant with CPRI Option 7, 8
  • Compliant with SFF-8431 SFP+ MSA
  • Hot Pluggable
  • Dual LC connector
  • Single +3.3V power supply
  • Support 8.5Gb/s to 11.32Gb/s Multi-Rate
  • 2-wire interface for management and diagnostic monitor
  • 850nm/1310nm/1550nm laser transmitter
  • Transmission distance of 300m~220m over MM fiber
  • Transmission distance of 2km~100km over SM fiber
Product Application
  • 10GBase-X Ethernet
  • CPRI Option #7 @9.83G, #8 @10.1376G
  • OTN OTU2 @10.7G, OTU2e @11.09G,
  • OTU2f @11.32G
  • SONET OC-192 & SDH STM-64 @9.953G


Standard SPEC :

PS. Please contact our Sales for Customized SPEC

*If you want to buy fiber optical transceiver, please tell us what brand and model name of Host equipment you will apply. We need to know what coding to be input for you.

Part NumberData RateDistanceWavelengthTemperatureRemark

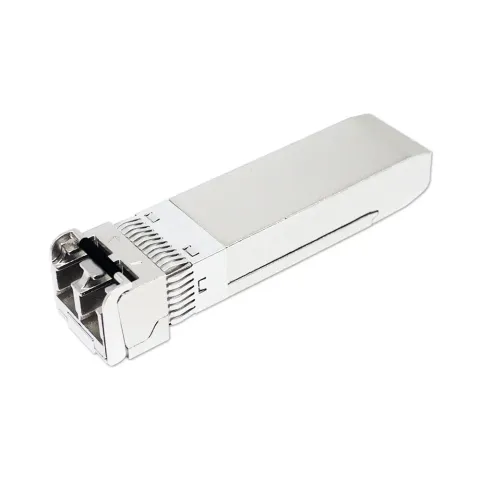

FSPP-H7-M85-X3D10GbpsMM 300m (OM3)850nm0~70°CSFP+ 10G-SR
FSPP-H7-M85-X3DM10GbpsMM 300m (OM3)850nm0~70°CSFP+10G-SR, Multi-Rate
FSPP-H7-M13-X2D10GbpsMM 220m1310nm0~70°CSFP+ 10G-LRM
FSPP-H7-M13-X2D-SX310GbpsOM3 220m
SM 300m		1310nm0~70°CSFP+ 10G-LRM MM 220m, SM 300m
FSPP-H7-S13-02D10GbpsSM 2km1310nm0~70°CSFP+ 10G-LRL
FSPP-H7-S13-02DM10GbpsSM 2km1310nm0~70°CSFP+10G-LRL, Multi-Rate

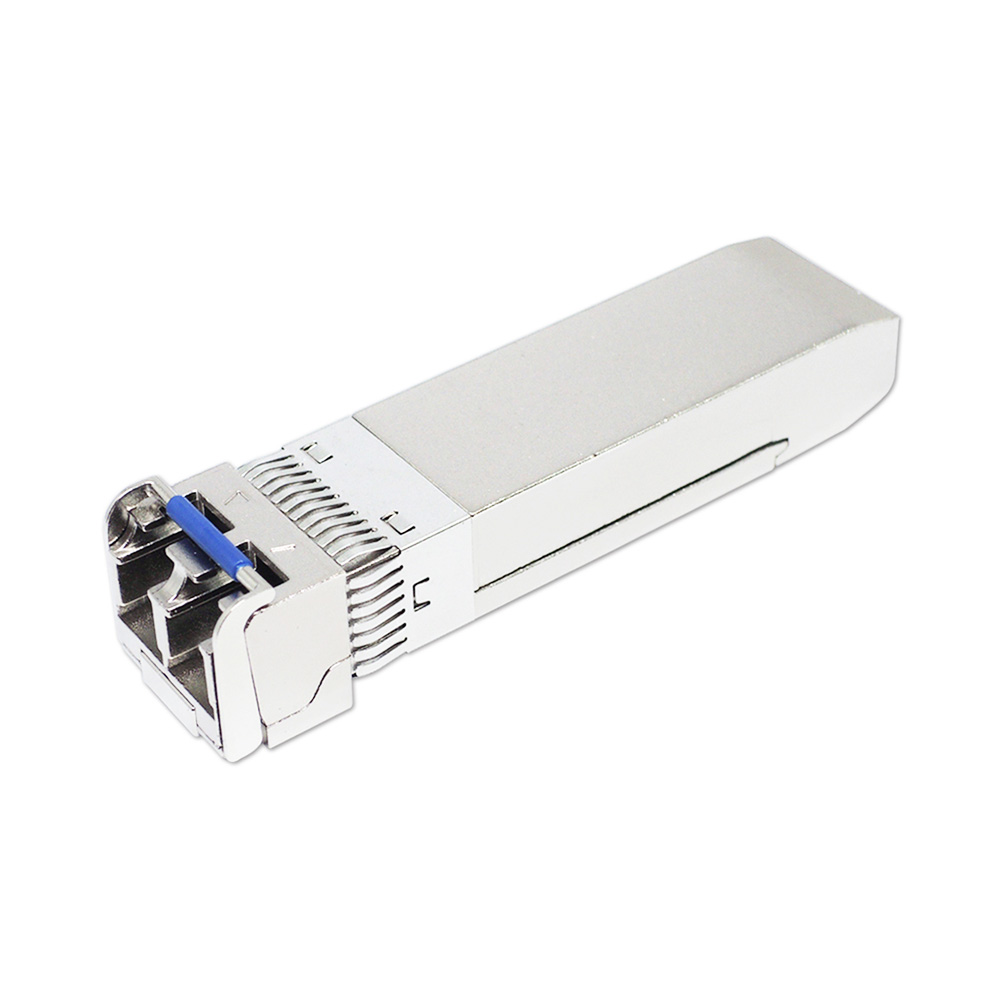

FSPP-H7-S13-10D10GbpsSM 10km1310nm0~70°CSFP+ 10G-LR
FSPP-H7-S13-10DM10GbpsSM 10km1310nm0~70°CSFP+ 10G-LR, Multi-Rate
FSPP-H7-S13-20D10GbpsSM 20km1310nm0~70°CSFP+ 10G-LR20
FSPP-H7-S13-20DM10GbpsSM 20km1310nm0~70°CSFP+10G-LR20, Multi-Rate
FSPP-H7-S13-40D10GbpsSM 40km1310nm0~70°CSFP+ 10G-ER-1310
FSPP-H7-S13-40DM10GbpsSM 40km1310nm0~70°CSFP+ 10G-ER-1310, Multi-Rate
FSPP-H7-S13-60D10GbpsSM 60km1310nm0~70°CSFP+10G-ER+1310 60km
FSPP-H7-S15-40D10GbpsSM 40km1550nm0~70°CSFP+ 10G-ER
FSPP-H7-S15-40DM10GbpsSM 40km1550nm0~70°CSFP+10G-ER, Multi-Rate

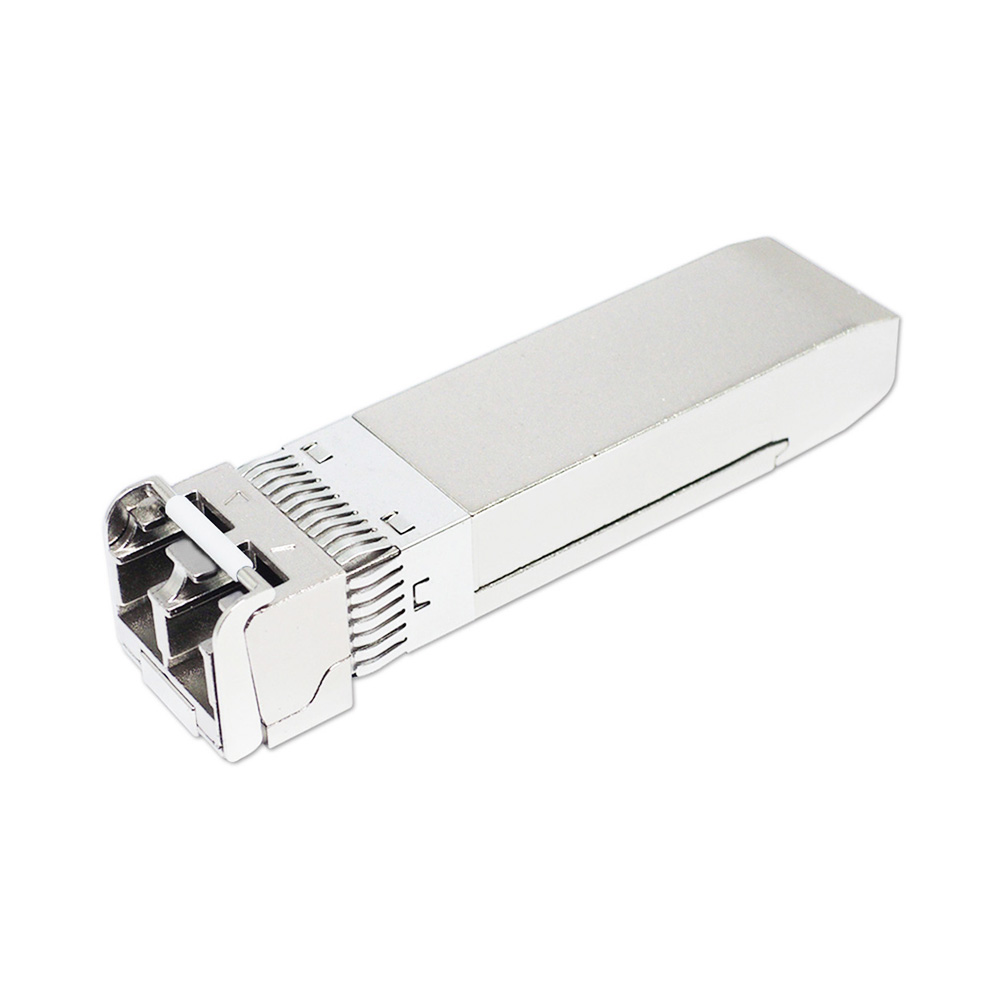

FSPP-H7-S15-80D10GbpsSM 80km1550nm0~70°CSFP+ 10G-ZR
FSPP-H7-S15-80DM10GbpsSM 80km1550nm0~70°CSFP+ 10G-ZR, Multi-Rate
FSPP-H7-S15-A0D10GbpsSM 100km1550nm0~70°CSFP+ 10G-ZR100

*Industrial Temp. available. Please contact our Sales for Industrial Temperature Transceiver.


FAQ

1.  Do you have any MOQ?

      Ans : No, we did not set any MOQ unless for Special promotion item.


2.  How can I pay you?

      Ans : We accept Bank Wire Transfer, Paypal ( for <$1000 payment )

       Please contact us for our Paypay account.


3.  What is your warranty?

     Ans : We offer basic 1 year warranty for all products.


4.  Can I use your Transceiver module on Cisco or Alcatel-Lucent equipment?

      Ans : Yes, we can offer Transceiver modules compatible on Cisco, Alcatel-Lucent, HP, Extreme…etc.


5.  How about your lead-time?

      Ans : For normal order, we can deliver in 1~2 weeks, for Hot selling products, we can deliver within 3 days.



產品認證

CE
FCC
RoHS
化學物質管理措施
UL

線下訂購支付細節

  • 支付條款 : 其他 ,TT ,PayPal
  • 最小訂購量 : 1 PCS

最近更新 : 2024-12-27
