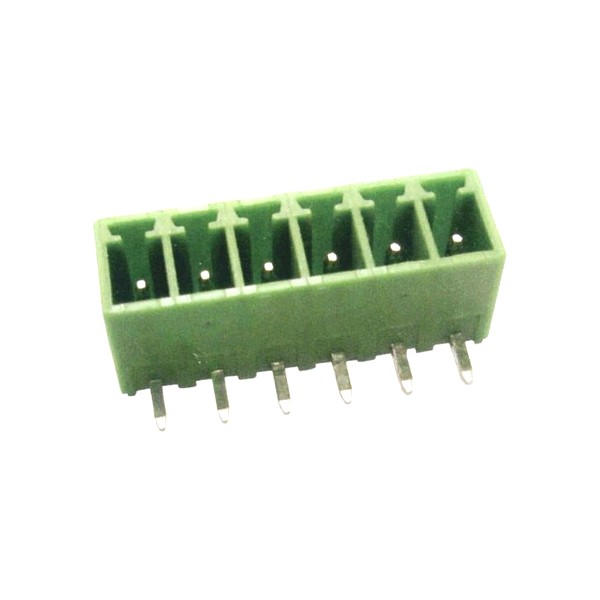

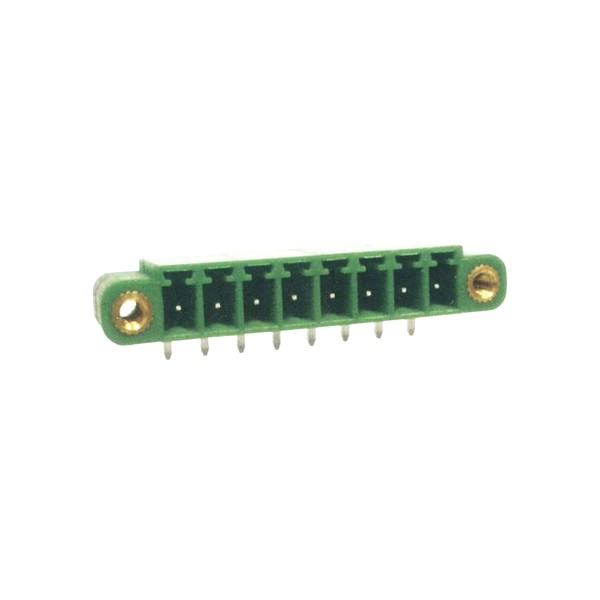

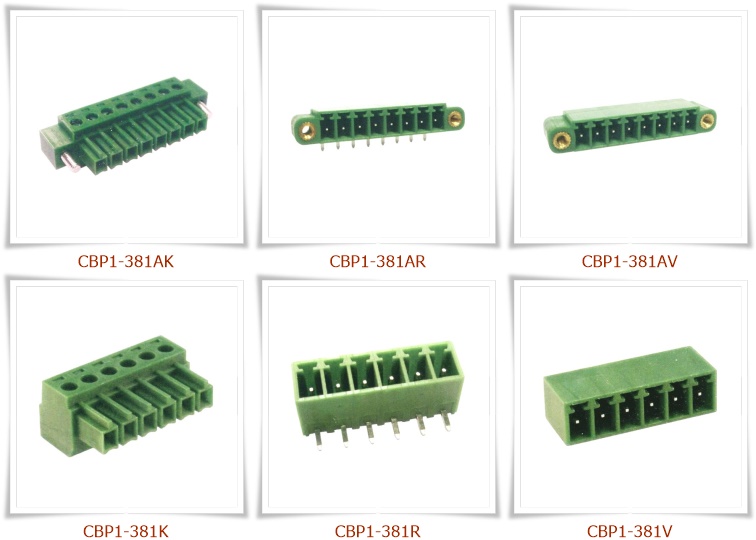

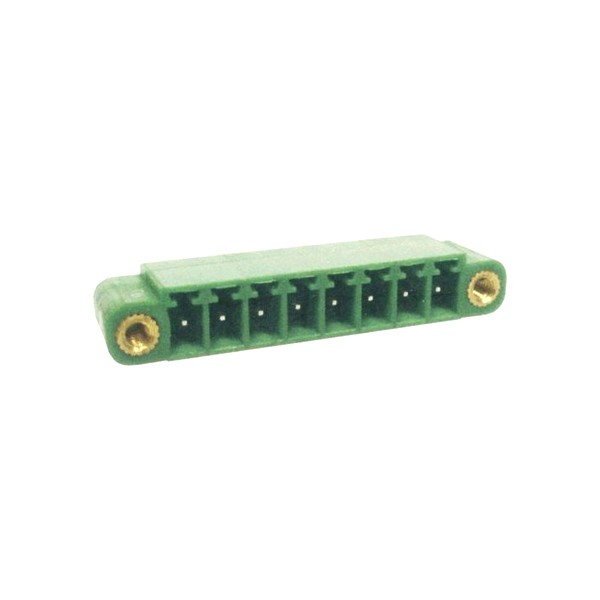

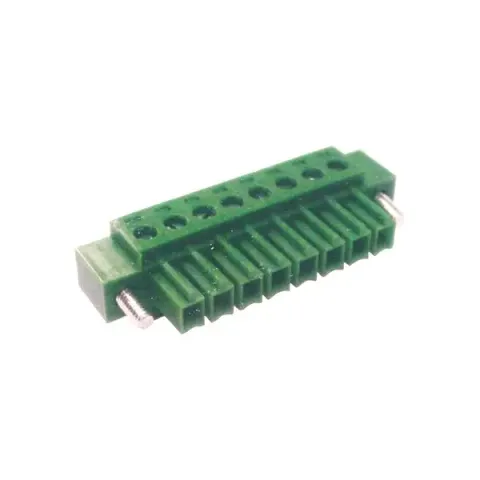

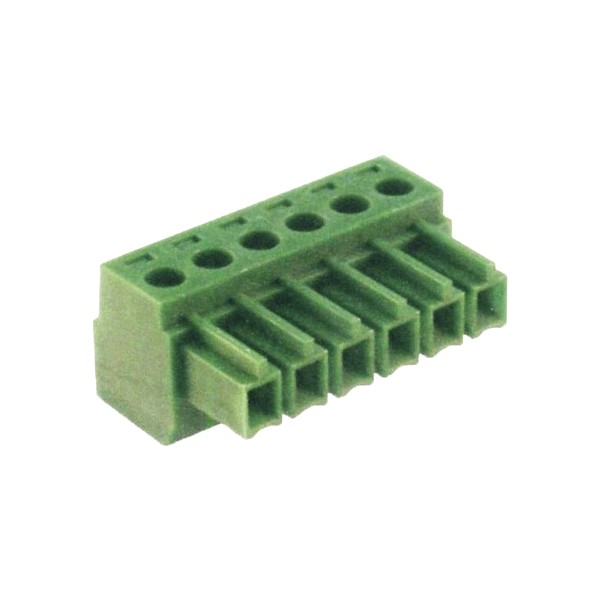

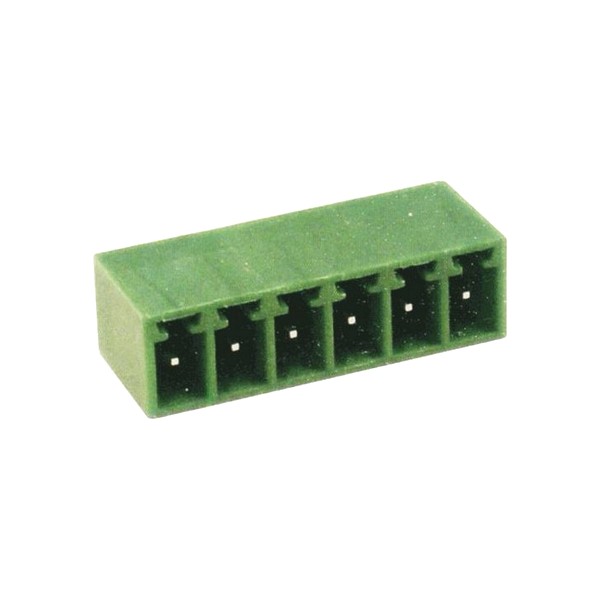

CBP1-381 插拔式接線端子台，PCB端子台 3.81mm pitch, 10A 300VAC

• 產品細節
• 公司簡介

Made in Taiwan

規格

• 類型 : PCB

主要特徵

CBP1-381 插拔式接線端子台,PCB端子台 3.81mm pitch, 10A 300VAC

1. Model Number: CBP1-381

2. Rating: 10A 300VAC

3. Body Material: Polyamide 66, Green

4. Contact: Phosphor Bronze, 0.3t, Nickel Plated

5. Screw: M2.0, Steel, Zine Plated

6. Cage clamp: Brass, 0.7t, Nickel Plated

7. Solder Pin: 0.8mm Brass, Tin Plated

8. Working Temperature: -40˚C to +105˚C

9. Insulation withstand Voltage: AC2000V/min

10. Insulation resistance: 500MΩ or more at DC 500V

11. Wire Range: 26~16 AWG

12. Screw Torque Value: 3kg/cm

13. Poles: 2P~16P

14. Pitch: 3.81mm

15. Place of Origin: Taiwan


Related Links

線下訂購支付細節

• 支付條款 : TT

附件

• CBP1-381.pdf(2.52MB)

最近更新 : 2022-10-12
