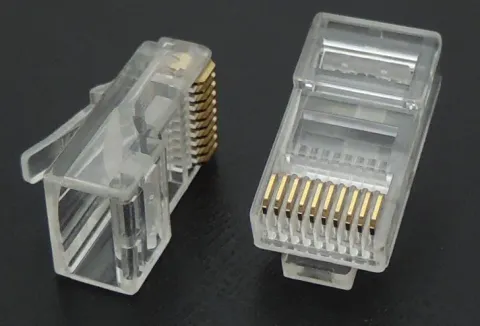

RJ50 水晶接頭 10P10C

型號
MP10P10C5012N2
製造地
台灣
供應商
力譽精密工業股份有限公司更多該商品之資訊
請求報價

規格

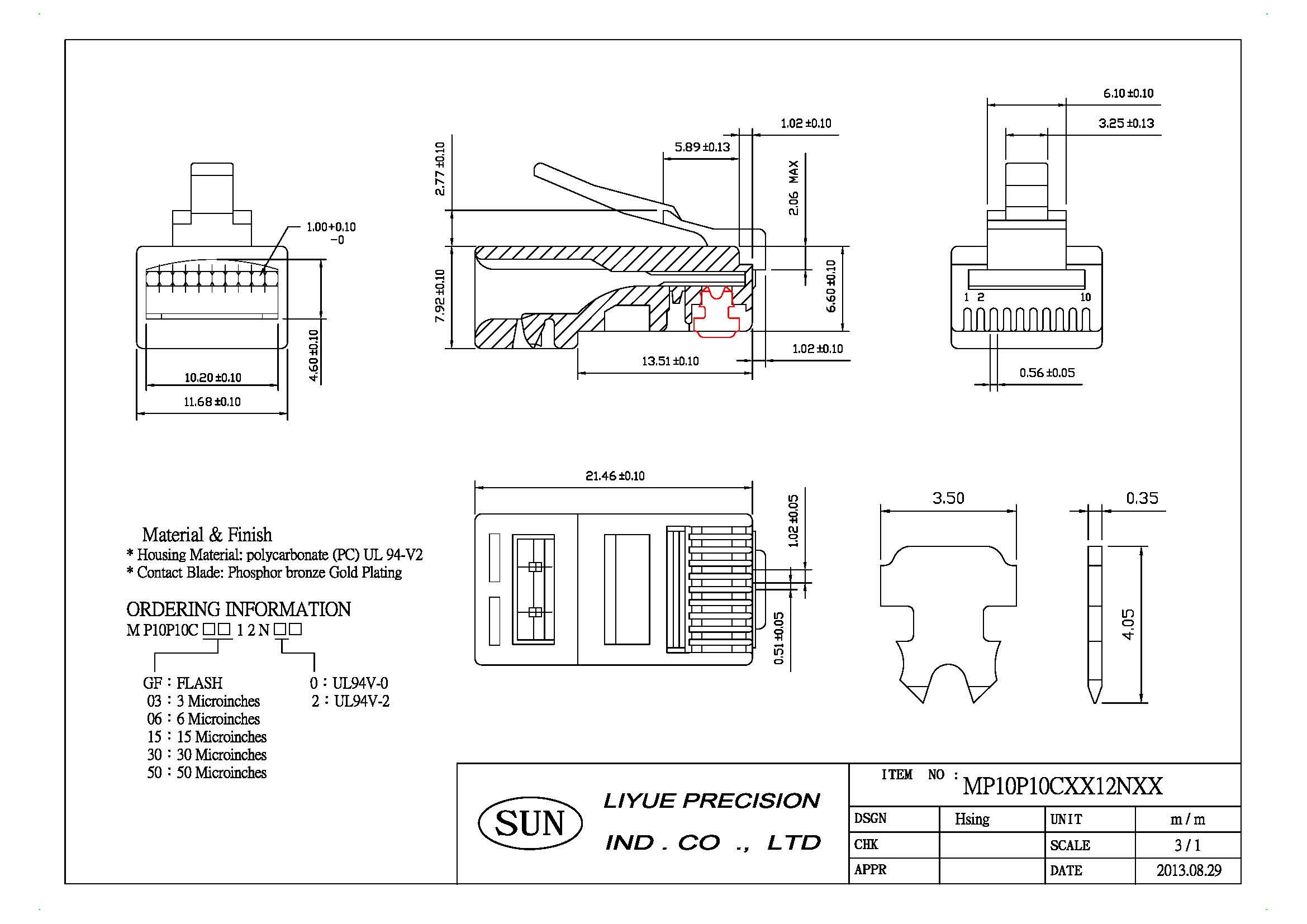

  • MP10P10C5012N2 : RJ50-10P10C-50μ
  • Gold Plating : Gold thickness is according to the customers required.
  • Housing Material : Polycarbonate (PC)
  • Contact Blade : Phosphor Bronze
  • Multi-core twisted pair : For 24~26 AWG

主要特徵

Electrical:
1.Applications: 250V AC max. at 2 Amps.
2.Dielectric withstanding Voltage: 500 Volts AC.
3.Insulation Resistance: 500 Megohms.
4.Termination Resistance: 35 Milliohms max. after enviromental testing.
 Mechanical:
1.Cable-to-plug tensile strength-20 lbs [89N] min.
2.Durability: 1000 mating cycles
3.Temperature Range: - 40°C to + 100°C

產品認證

線下訂購支付細節

  • 支付條款 : TT
