500 Series
CM500 series
1. CE mark, fire rated
2. EN1125 and EN1634 approved
3. None handed
4. Pullman latch and lateral latch design
6. Modular design, more than 4 point locks are available 7. Material: stainless steel or steel powder coating
8. Difference finish is available
| Category of use |
Durability |
Door Mass |
Suitability for use on |
Safety fire/smoke doors |
Corrosion resistance |
Security |
Project of horizontal bar |
Type of horizontal
bar operation |
Field of Door application |
| 3 |
7 |
6 |
B |
1 |
4 |
2 |
2 |
A |
A |
| Feature |
ER-CM501 |
ER-CM505 |
ER-CM506 |
ER-CM507 |
ER-CM508 |
ER-CM509 |
ER-CM510 |
ER-CM511 |
| Lock Point |
1 |
1 |
2 |
2 |
3 |

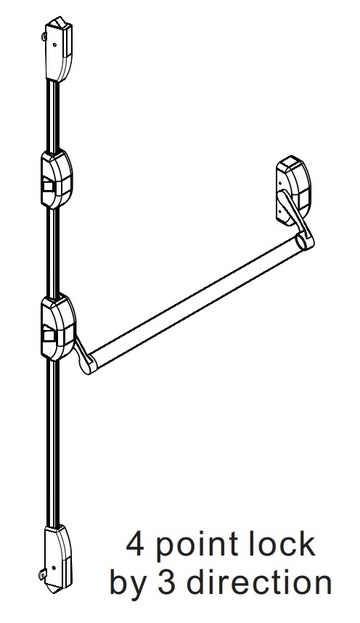

4 |
3 |
4 |
| Push Bar |
1,000mm length |
| Door Style |
Single and double door |
Single door |
Single and double door |
| Max. Door Weight |
200kg. |
| Dogging Device |
N/A |
| Security Anti-thrust latch |
N/A |
| Door Width* |
up to 1,500mm |
| Door Height* |
2,133mm |
| Door thickness* |
50mm |
*Note: if the door width, door height and door thickness is outside of the specification, the order should mark the special requirement.
FOB Kaohsiung, Taiwan
T/T Payment
MOQ 84 sets
