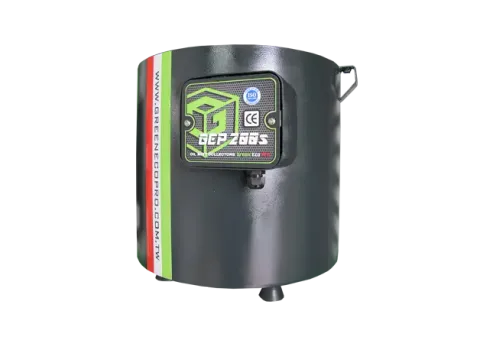

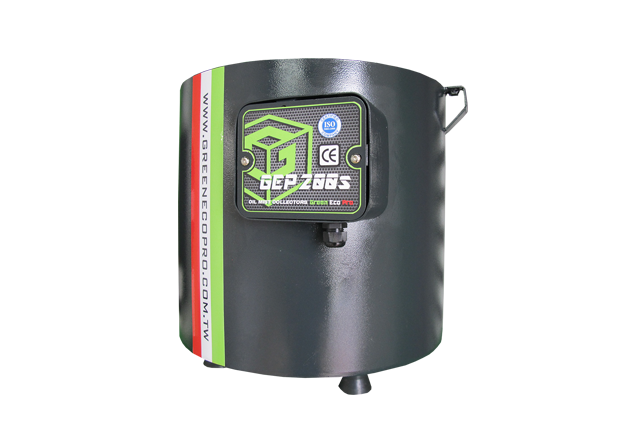

油霧回收機 高效能 省電IE3馬達

規格

• 類型 : Oil Skimmer

主要特徵

油性切削液、水性切削液專用油霧回收機，GEP系列採用渦流葉輪、直立設計、高精密度之過濾材，有效解決霧化及油煙問題；選配濾煙筒針對油煙進行有效攔截可達1μm，因渦流葉輪特殊設計有效回收霧化切削液，以節省切削液之流失。
直立式設計為先抽風再過濾，所以風力相對較大，而橫置式有三層過濾，使得馬達的抽風時，風力相對會較弱；以震動率大小而言，以直立式的震動上相對於橫置式的震動小，使得CNC加工時的精度較高，因此GEP系列的直立式設計，創造大風量、小震動、高攔截油霧回流量並專業處理回收CNC車床、銑床等工具機因加工時所產生的油煙、油氣、油霧及細懸浮微粒等廢棄油煙，以有效達到PM2.5的標準值範圍。

機械美學設計導入、 市場上高效能機型
低震動、 安靜，不影響加工精度
獨創二維渦輪葉片且CE認證
全系列油霧回收機，採IE3超高效能馬達，省電、減碳、高效能

特徵說明

採IE3超高效能馬達

• 省電、減碳、高效能

低震動、低噪音

• 不影響CNC機台運作

機械美學設計導入

• 直立式設計，加長馬達運作的壽命

高效能過濾

• 回油率99%，濾網有效攔截5μm的懸浮微粒

設備規格

型號	GEP-200S	單位
電壓	220/380	V
馬力	1/2 hp / 0.4 kw	hp / kw (IE3)
電流	1.7/1.18	A
風速	19	M/s
風量	16.5/18	m3/min(50hz/60hz)
頻率	50/60	Hz
轉速	2860/3440	R.P.M.
噪音	65	dB
重量	36.5/80.4	Kg/lb
LED智能顯示	-
吸入口徑	150/6	mm/inch
適用機床容積	1~4	m3
尺寸	Ø385*340	mm

影片

油霧產品影片GEP200S

最近更新 : 2020-10-22
