RM-N8MMI為SMARC 2.0 CPU電腦模組,其採用NXP ARM Cortex-A53 i.MX 8M工業級處理器,可完美運用於有低功耗兼高性能需求的多媒體以及IoT應用,如乘客交通訊息和娛樂系統等。
The RM-N8MMI SMARC 2.0 CPU Module is built with NXP ARM Cortex-A53 i.MX 8M Mini Quad 1.6GHz industrial-grade processors. Together with a customized carrier board equipped with an array of serial, video and network interfaces, the RM-N8MMI solution is the perfect choice for multimedia and IoT applications that require low power and high performance in transportation passenger information and entertainment systems.
"The modular approach of the SMARC specification allows customers to take full advantage of the scalability benefit, optimized time-to-market and upgrade capability," said Archer Chien, Director of Solution Product Planning Dept. at IBASE. "The cost-efficient RM-N8MMI offers a competitive advantage to our customers by reducing the Total Cost of Ownership (TCO) and lowering the lifecycle costs."

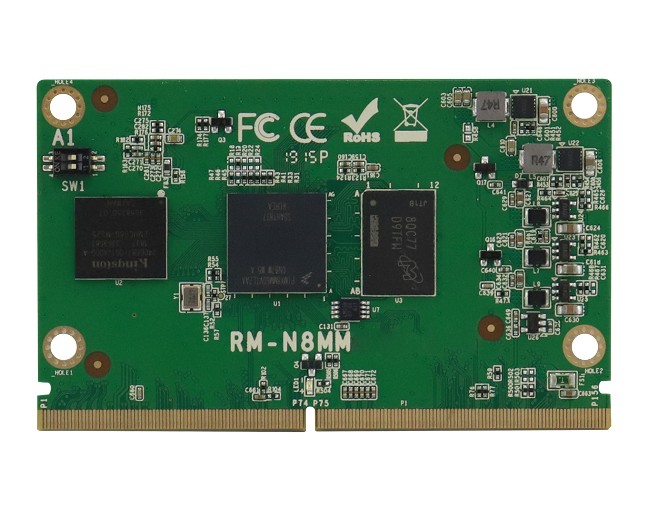

The RM-N8MMI module measures 82mm by 50mm and features Vivante's GC 320 GPU, 2GB soldered LPDDR4 and up to 64GB eMMC flash memory. Extensive I/Os supported include 1x GbE, 2x USB 2.0 with OTG interface, 1x MIPI CSI-2 for image capture, 4x UART, 2x SPI, 2x I
2S, 2x SPI and 1x PCI-E (x1) Gen2.
Shipped with extended longevity of up to 10 years, the RM-N8MMI is provided with Yocto BSP and Android 9.0 support. It is available with an industrial grade variant that runs from -40°C to +85°C extended temperature, as well as the RP-103-SMC carrier board providing users a rich set of interfaces and 12V~24V DC input.
