主要特徵
❒ Product Details
FS5620M代表了高級數據收集設備。 FS5620M 2D固定式條形碼讀取器使用先進的2D成像技術，為OEM KIOSK，查價機，讀票機，文檔處理以及自動售貨機 (自動販賣機)提供了解決方案。
FS5620M 2D固定式條形碼掃描器專為輕鬆安裝整合而設計，為系統設計人員提供了即插即用的解決方案。
FS5620M具有出色的讀取，high motion tolerance，快速讀取功能，並且在微小的條形碼上也具有出色的性能。 憑藉獨特的磁吸支架，FS5620M成為免持 2D條形碼掃描儀
❒ 產品特點:
* 內建高解析度的 CMOS (1280 x 1024 pixels), 可讀取 3 mil Code-39條碼
* Motion Tolerance: 3.0m / sec, 可準確讀取移動中的條碼.

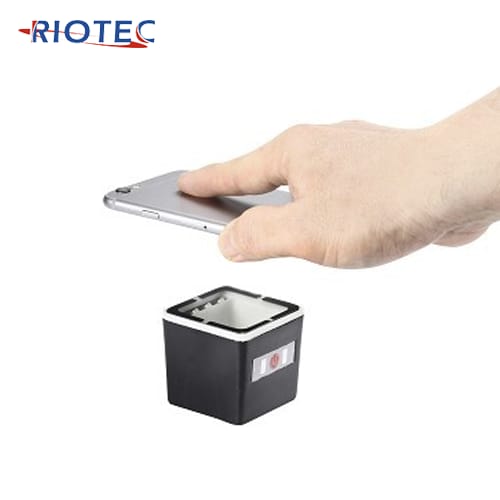

* 可快速讀取 紙本上/手機上的 1D / 2D 條碼.
• 體積適中, 適合下列方式使用
** 可直接放桌上使用
** 可搭配專用stand 使用, 當免持2D 掃描器使用

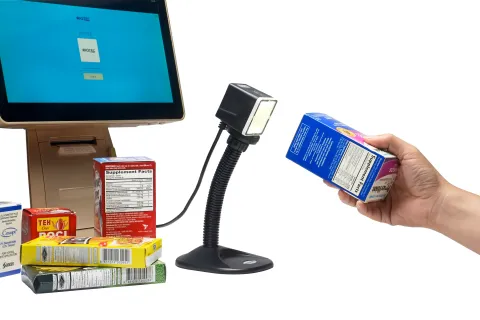

** 可裝入 KIOSK, Price Checker 查價機, 閘門機, 自動販賣機 使用
* 可適用環境: 超級市場, 便利商店, 醫院,
• 可當 QR code 掃描器使用, 讀取支付寶, Line-Pay 等行動支付 QR code.
❒ 選購

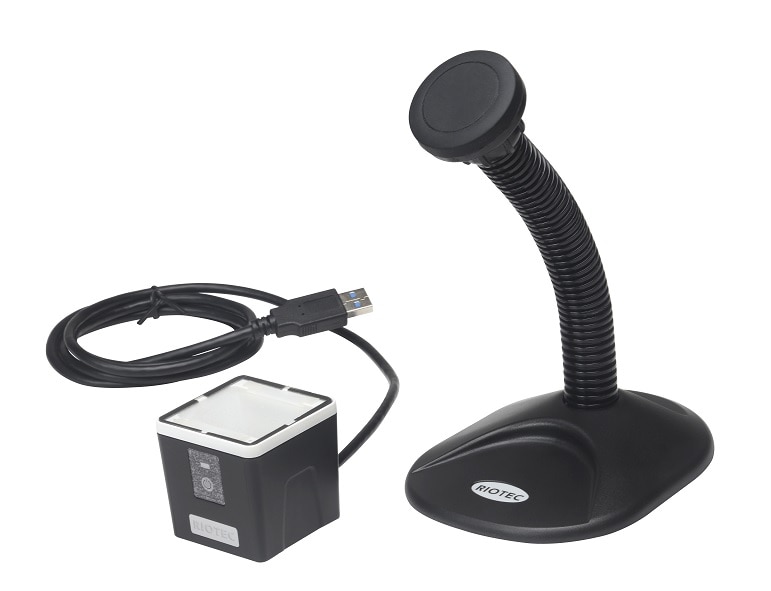

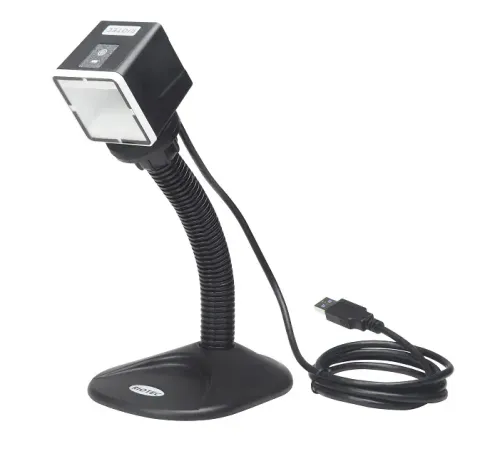

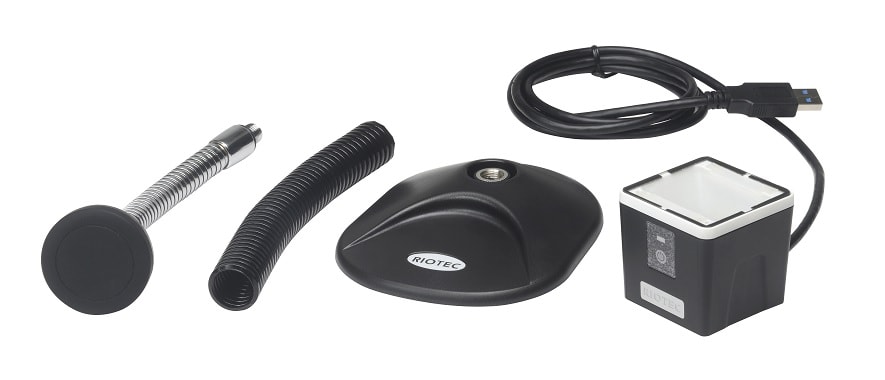

1. 使用支架, FS5620M 將成為 免持二維條碼掃描器.
❒ Specification
Specifications : | |
| Model Name | FS5620M |
| Description | Stationary 2D Imager barcode scanner |
| Engine | RIOTEC 2D engine |
| Scan Mode | Automatic sensing |
| Performance Characteristics | |
Motion Tolerance | 3.0 m/sec |
| Scan speed | 60 frame /sec |
| Light source | 620 nm Red LED |
Depth of field | 13 mil EAN13: 240mm 20 mil QR CODE: 210mm |
| Sensor | CMOS (1280×1024 pixels) |
| Best resolution | 1D (3 mil)：Code 39 |
| Reading angle | Tilt: 360° / Pitch ±60° / Skew ±70° |
Print contrast | ≥ 20% |
| Indicators | LED & Beeper |
Symbologies | 1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Data Matrix, Aztec |
| Interface | USB HID |
Electrical Characteristics | |
| Input voltage | 5 V/DC ± 5% |
| Current - operating | 300 mA |
| Physical Characteristics | |
| Dimension (L x W x H) | 52 x 52 x 50 mm |
| Weight | 150 g +/- 5 g (with Cable No stand) |
| Environment | |
Temperature-operation | 0°C to 50°C |
| Temperature-storage | -10°C to 60°C |
| Humidity-operation | 5% to 95% relative humidity, non-condensi |
| Ambient Light | 0-70000Lux |
| Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions.) | |
| 4 mil Code3 9 | 10mm - 100mm |
| 5 mil Code 39 | 10mm - 120mm |
| 13 mil UPC-A | 10mm - 240mm |
| 6.67 mil PDF417 | 10mm - 120mm |
| 10 mil DataMatrix | 10mm - 110mm |
20 mil QR Code | 10mm - 210mm |
❒ Video
產品認證
影片
FS5620M- scan the barcode quickly
