主要特徵
❒ 產品詳情

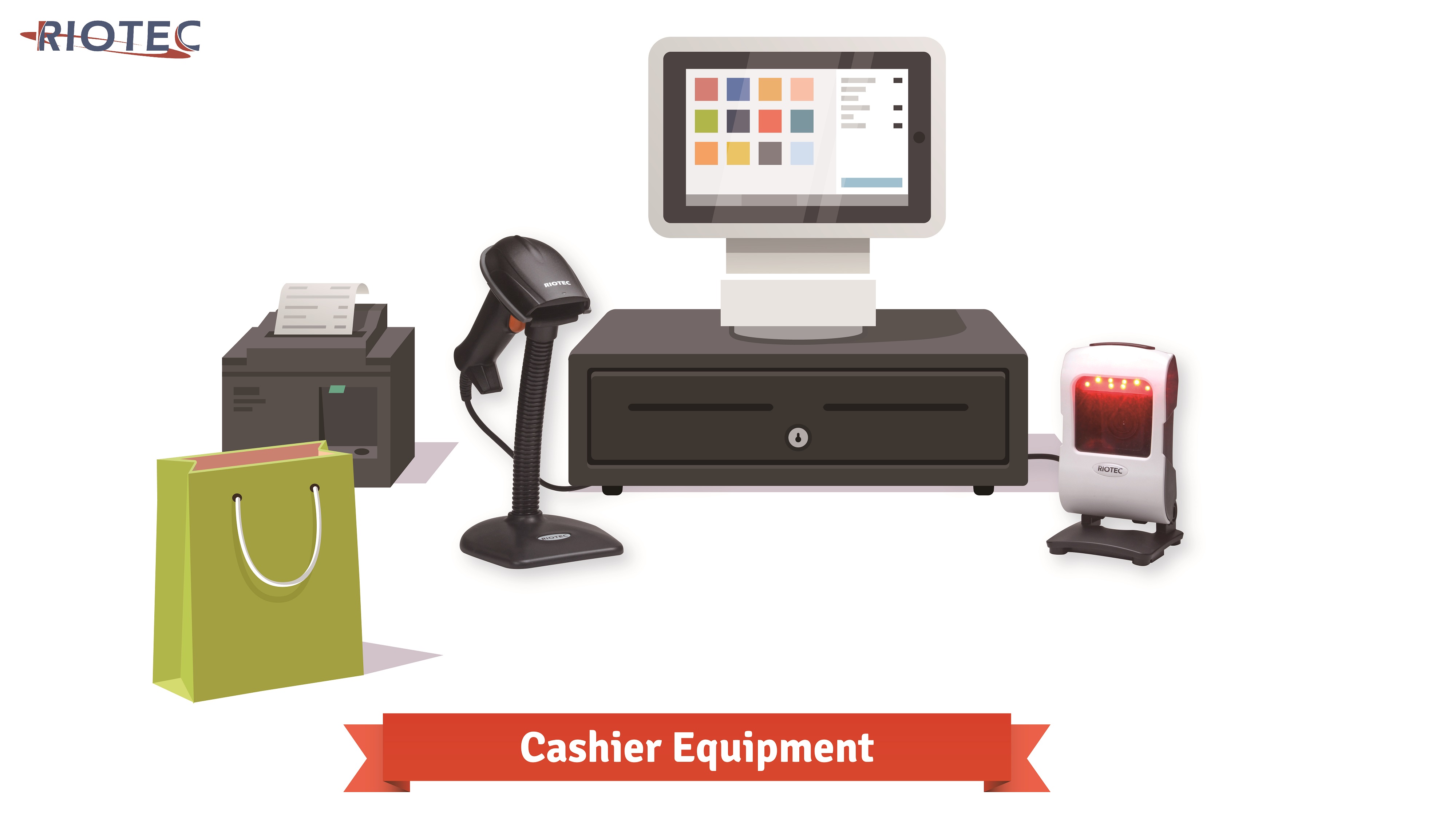

OM7520M 是 POS 的最佳配件，專為零售銷售點 (POS) 和倉庫應用而設計。利用數字成像掃描引擎，OM7520M 能夠讀取紙質標籤以及手機、平板電腦和計算機顯示器上的一維和二維條碼。

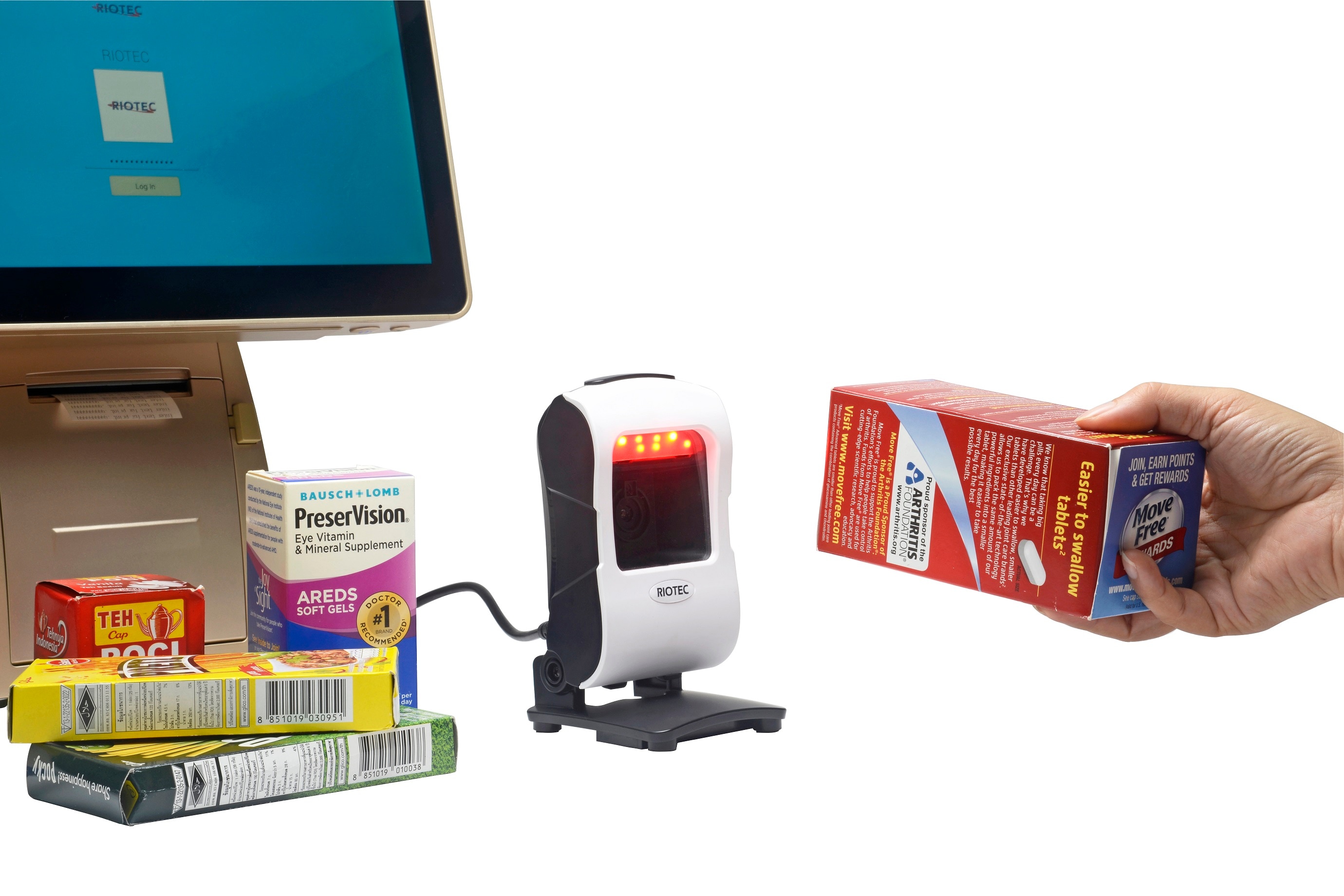

對於繁忙的零售環境，OM7520M 可用於免提和手持模式。結賬人員可以簡單地將條形碼標籤或標籤出示給掃描儀的窗口。無論條碼標籤方向如何，OM7520M 全向掃描器都將快速讀取條碼並幫助您的客戶快速結賬。
此外，OM7520M還可應用於門禁領域。只需反轉支架方向，然後將 OM7520M 固定在牆上。全方位條碼掃描器可以輕鬆讀取卡上的 ID 代碼。
❒ 主要特點
易於安裝：即插即用
百萬像素 CMOS 傳感器（1280 x 1024 像素）：可讀取微小條碼“Code-39 3 mil”
優異的運動容差：3.0 m/sec：可以正確讀取移動的條碼。
演示模式：可自動感應/讀取條碼。
可以讀取紙質標籤和顯示器上的一維/二維條碼
免提模式：保持線路移動並最大限度地減少等待時間
可應用於超市、便利店、醫院……
可以讀取智能手機上的二維碼（支付寶或Line-Pay等）
接口：USB HID、USB-Serial、RS232

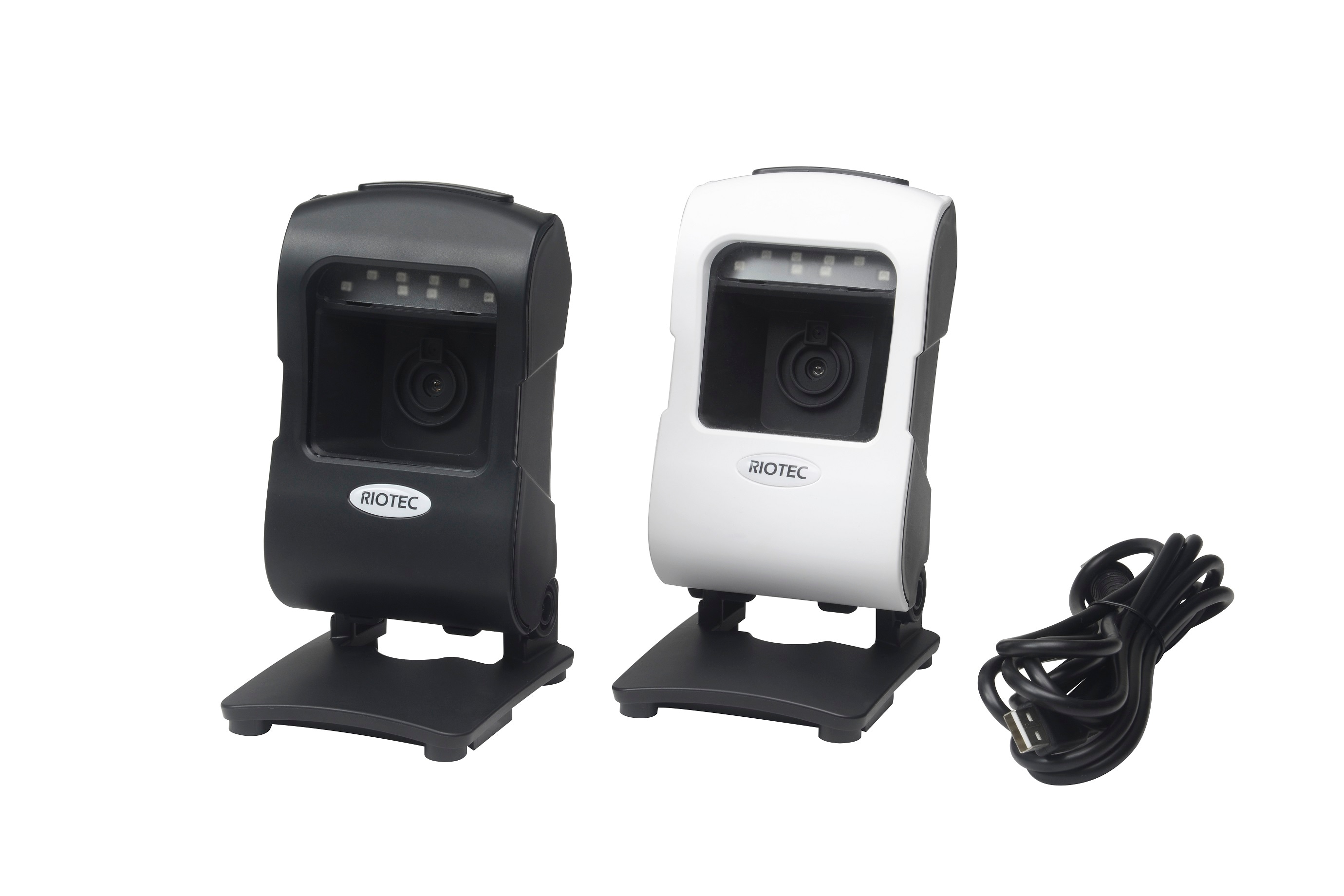

前殼：黑色或白色
Specifications： | |
| Model Name | OM7520M |
| Description | Omni-Directional 2D Imager barcode scanner |
| Engine | 2D engine |
Scan Mode | Automatic |
| Performance Characteristics | |
| Motion Tolerance | 3.0m/sec |
Scan speed | 60 frame /sec |
| Light source | 620nm Red LED |
| Depth of field | 13mil EAN13: 260mm |
Sensor | CMOS (1280×1024 pixels) |
| Best resolution | 1D (3mil)：Code 39 |
| Reading angle | Tilt: 360° / Pitch ±60° / Skew ±70° |
| Print contrast | ≥ 20% |
| Indicators | LED & Beeper |
Symbologies | 1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39,Code 93, Code 128, Codabar, industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128 ,GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Data Matrix, Aztec |
| Interface | USB HID, USB Serial (by request), RS232 (by request) |
| Electrical Characteristics | |
| Input voltage | 5 V/DC ± 5% |
| Current - operating | 300 mA |
| Physical Characteristics | |
| Dimension (L x W x H) | 88 x 82 x 156 mm |
| Weight | 246 g± 5g |
| Environment | |
Temperature-operation | 0°C to 50°C |
| Temperature-storage | -10°C to 60°C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Ambient Light | 0-70000Lux |
| Decode Zone (DOF is measured at the office under 600 lux and by Standard barcode. There are +/- 10 mm Torrence. DOF may be also impacted by barcode quality and environmental conditions. ) | |
| 4 mil Code 39 | 10mm - 120mm |
| 5 mil Code 39 | 10mm - 140mm |
| 13 mil UPC-A | 10mm - 260mm |
| 6.67 mil PDF417 | 10mm - 140mm |
| 10 mil DataMatrix | 10mm - 130mm |
20 mil QR Code | 10mm - 230mm |
產品認證
影片
OM7520M- Desktop 2D barcode scanner
